Semi-Automatic Strapping Machine for Fast & Reliable Packaging

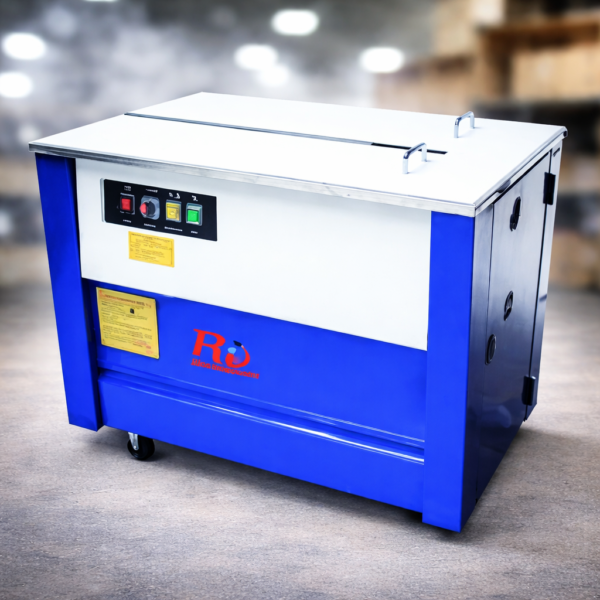

A Semi-Automatic Strapping Machine is a packaging machine used to strap cartons, boxes, bundles, or pallets using plastic straps such as PP (polypropylene) or PET. It is called semi-automatic because the operator manually places the strap around the package, while the machine automatically tightens, seals, and cuts the strap.

---

How It Works

1. The operator places the box or bundle on the machine table.

2. The strap is manually wrapped around the package and inserted into the machine slot.

3. The machine automatically tensions the strap, heat-seals it, and cuts the excess strap.

4. The next strap length is fed automatically, ready for the next cycle.

---

Key Features

• Easy operation, minimal training required

• Adjustable strap tension control

• Fast sealing with thermal (heat) sealing system

• Compact and movable design

• Low power consumption

• Works with PP strapping rolls (usually 9–15 mm width)

---

Applications

• Carton and box packing

• Agarbatti, dhoop, incense packaging units

• Warehouses & logistics

• Printing & paper bundles

• Food, FMCG, pharmaceuticals, and manufacturing industries

---

Advantages

• Increases packing speed and consistency

• Strong, neat, and reliable strapping

• Reduces manual labor and fatigue

• Cost-effective compared to fully automatic machines

• Ideal for small to medium production units

---

Typical Technical Specifications (Approx.)

• Strap Width: 9 mm / 12 mm / 15 mm

• Strap Material: PP

• Power Supply: 220–240 V, Single Phase

• Tension Strength: Adjustable up to ~45–60 kg

• Cycle Time: 2–3 seconds per strap
